GRE Backhoe

GRE Backhoe


For more information call: 01530 412 690

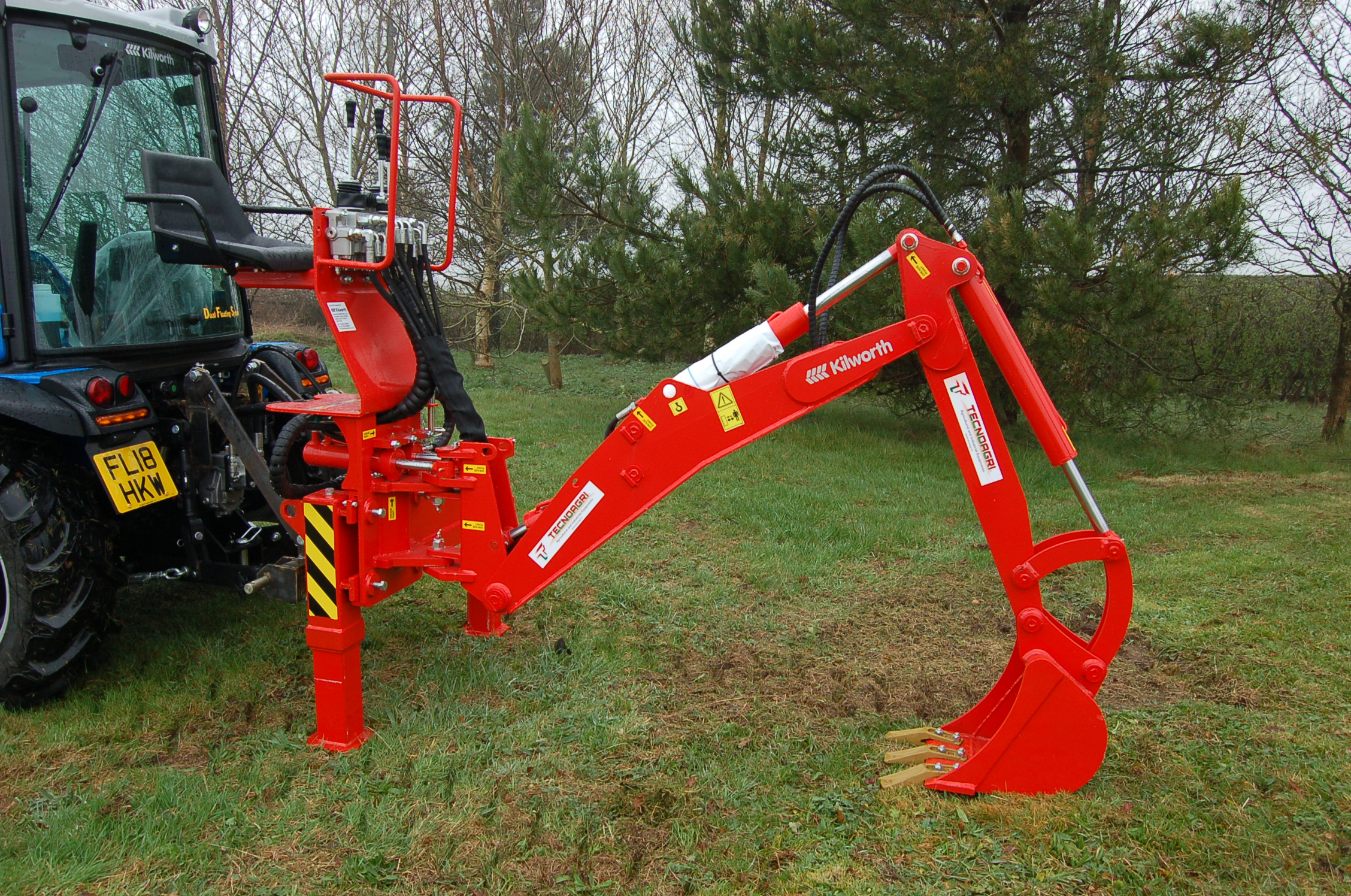

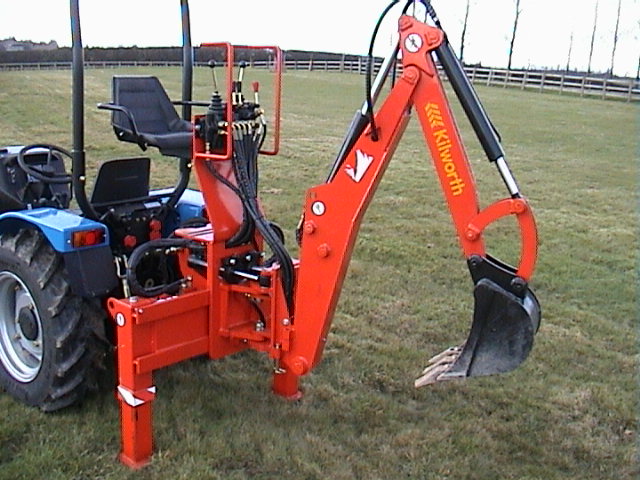

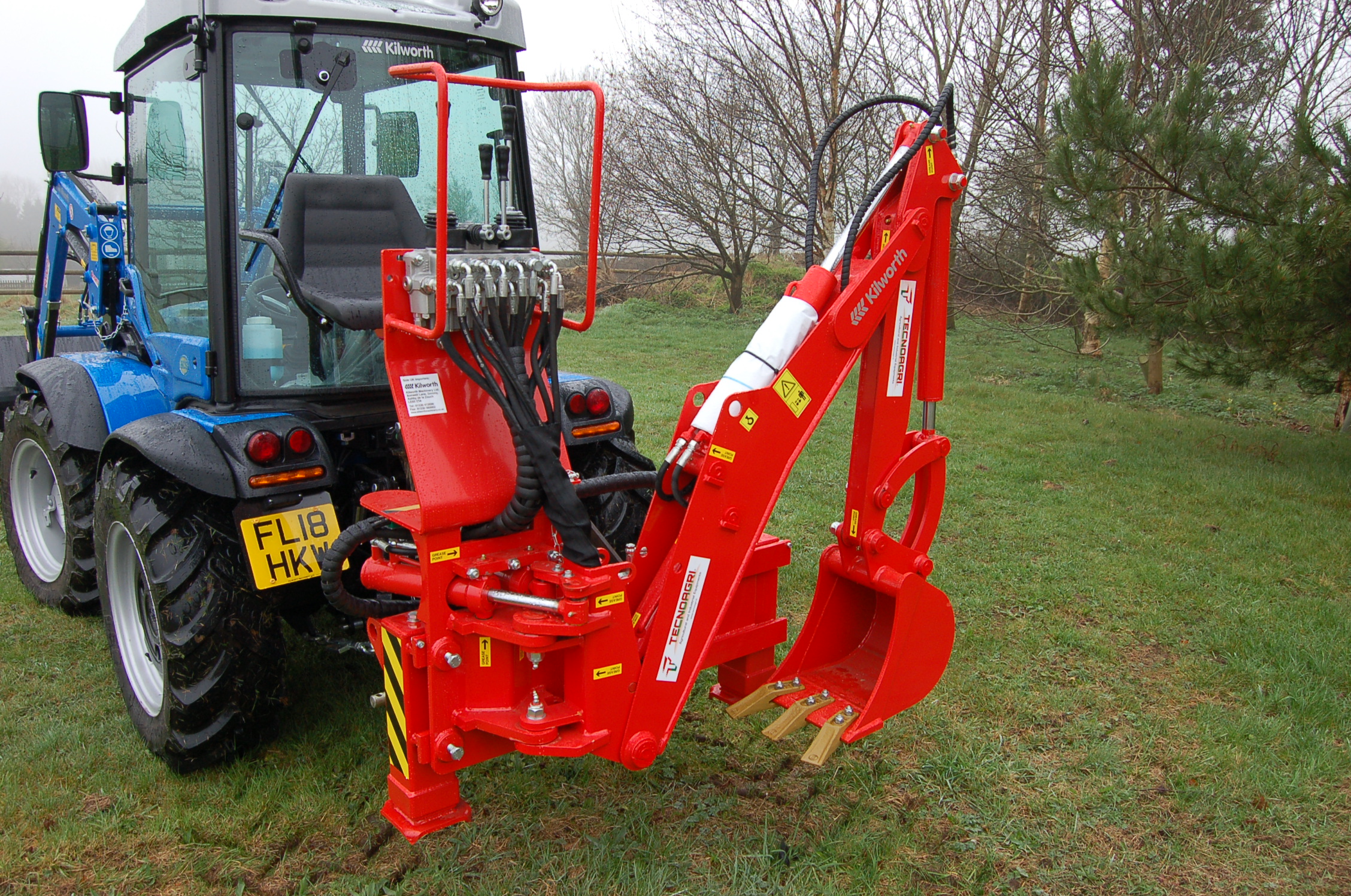

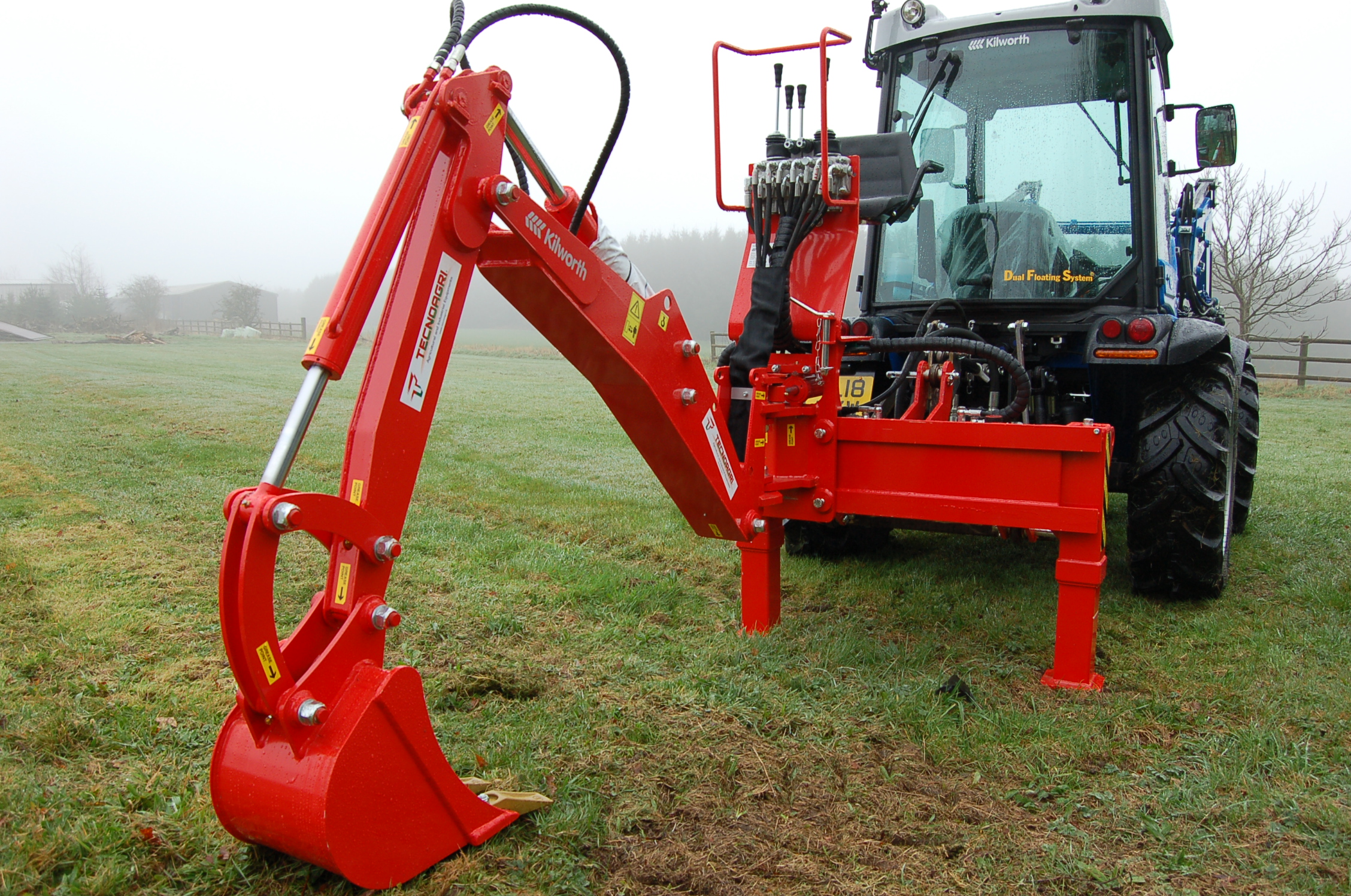

The GRE backhoe is mounted on to the tractor by the 3 point linkage. It does not have bolt on fixing brackets as with some types of backhoe. This enables the backhoe to be removed from the tractor quickly and easily so freeing the tractor for work with other implements.

Category:


Product Description

The GRE backhoe is mounted on to the tractor by the 3 point linkage. It does not have bolt on fixing brackets as with some types of backhoe. This enables the backhoe to be removed from the tractor quickly and easily so freeing the tractor for work with other implements.

Specification

  • Compact Backhoe for landscaping, golf courses and general estate maintenance.
  • Twin joystick control with separate levers for the stabilisers and side shift locking (where fitted).

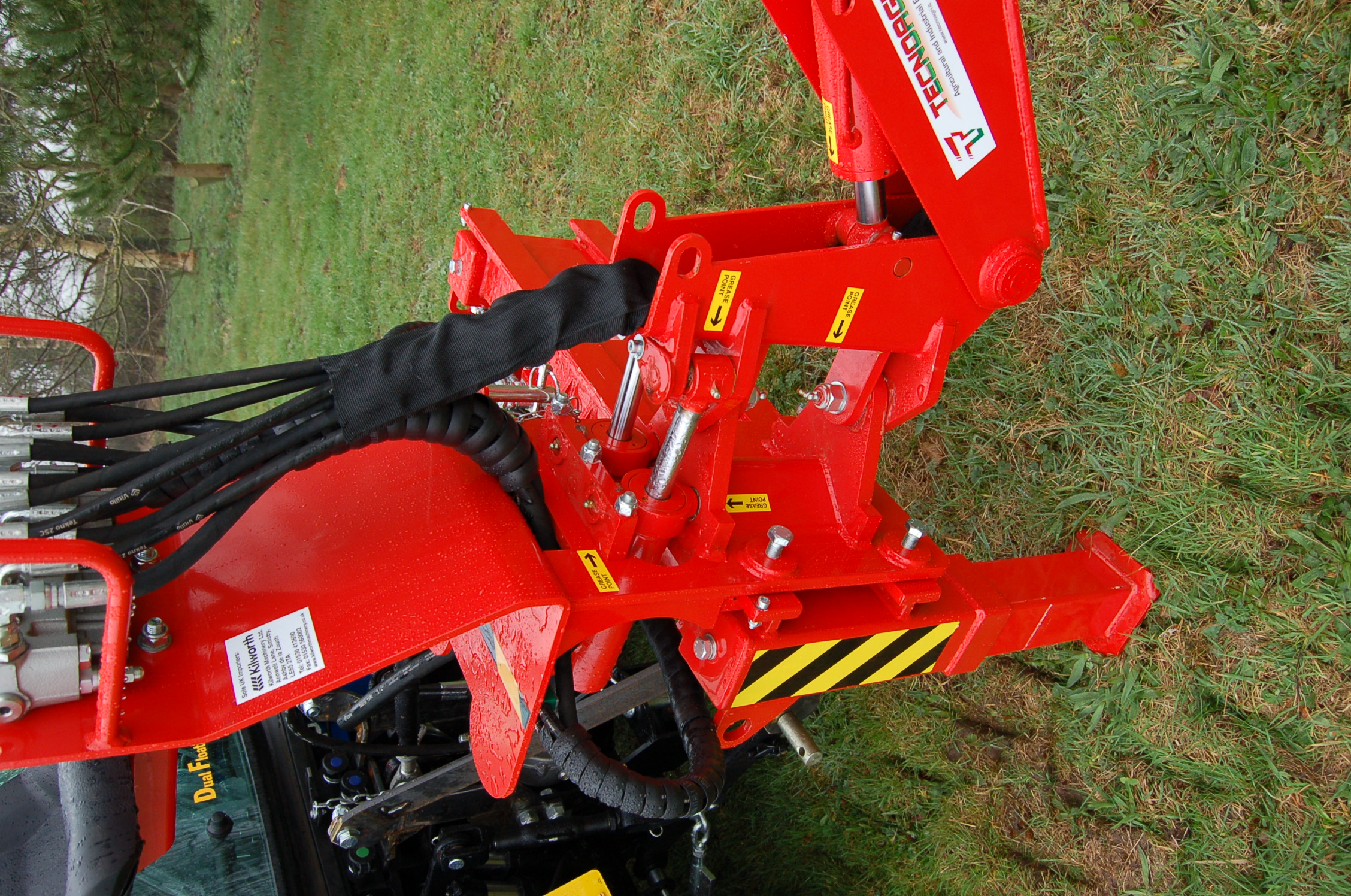

  • 3 point linkage mounted - simple to fit and remove from the tractor.
  • The standard machine uses the tractor auxiliary hydraulic service as the oil supply but the optional pump and tank kit is recommended for optimum performance.
  • GRE 19 and 23 models have a side shift frame with manual locking. Hydraulic locking is an option.
  • The GRE backhoes must not be fitted to the tractor without a mechanical locking device on the 3 point linkage. This prevents the linkage from moving upwards when the bucket is pushed downwards. This locking device can be supplied by Kilworth for all makes of tractor.

Models

Model Dig Depth HP Required Weight
GRE-15 1.5m 12-30 250kg
GRE-19 1.9m 20-40 350kg
GRE-23 2.3m 30-50 600kg

Optional Extras

  • Pump and tank kit.
  • Hydraulic side shift lock.

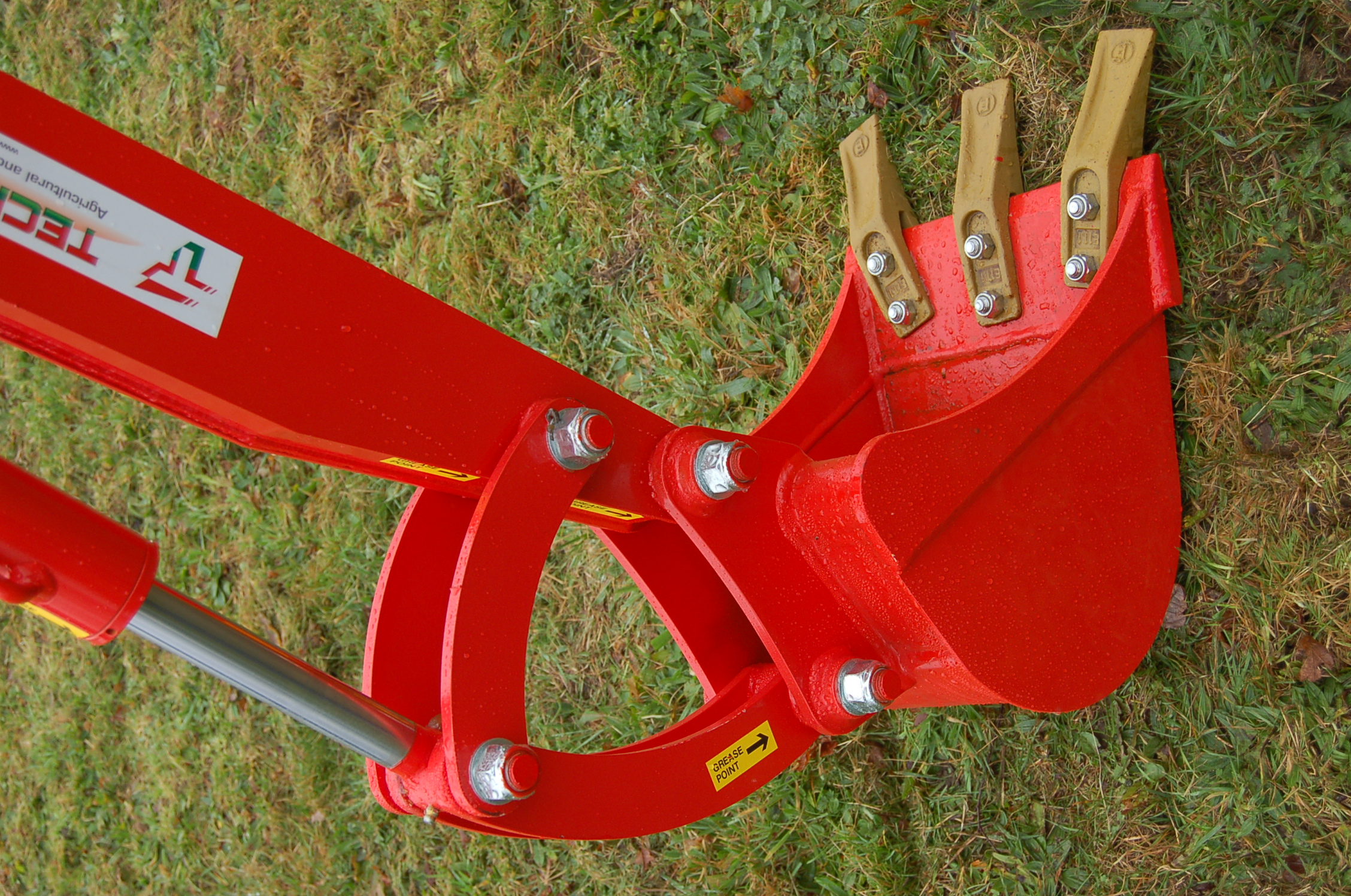

Bucket Options

  • Digging Bucket 6"
  • Digging Bucket 8"
  •  Digging Bucket 10"
  • Digging Bucket 12"
  •  Digging Bucket 14"
  •  Digging Bucket 16"
  •  Landscaping Bucket 24"
  • Landscaping Bucket 32"
